Page 12 of 12

Re: RE: Re: Accessories

Posted: Mon May 15, 2017 12:03 am
by dukebadboy
SUPERDUKEINOZ wrote:Search button at Pro-Bolt>

https://www.pro-bolt.com/search/?q=m10+ ... tanium+x+6

https://www.pro-bolt.com/search/?q=m8+f ... tanium+x+6

2 minutes to work all that out if you look around!
Thank you a lot!

Re: Accessories

Posted: Mon May 15, 2017 12:27 am
by dukebadboy
One more question, where can I find torque setting for M10 nuts?

Re: Accessories

Posted: Tue May 16, 2017 12:58 am
by MR C
SUPERDUKEINOZ wrote:
dukebadboy wrote: So I contacted pro-bolt and asked them what's the price for Flange nuts, but Vicky, from their sales team, couldn't find it. She was very sure they don't sell nuts for Flange.


Do you by any chance remember a product code? Or do I just ask for nuts of specific size?
You need flange nuts, not nuts to suit a flange, simply asking for the wrong thing

The sprocket carrier is M10 x 1.25 & the sprocket nuts are M8 x 1.25

The answer is usually very easy to find....google & parts diagrams

23 & 26>

http://www.ktmonlineparts.com.au/partFi ... #component
Yep that's em, I measured one tonight, m10

Accessories

Posted: Tue May 16, 2017 1:00 am
by MR C
dukebadboy wrote:One more question, where can I find torque setting for M10 nuts?
This i struggled on, even the tech at dealers could not give me a correct answer, I'm sure he said 45nm .

Re: Accessories

Posted: Tue May 16, 2017 1:27 am
by Freude am Fahren
According to the owner's manual (page 194). "Nut, rear hub shock absorber carrier, M10x1.25, 45Nm (33.2 lb-ft), Use Loctite 243".

If that's the ones you're referring to.

Re: Accessories

Posted: Tue May 16, 2017 10:07 am
by megalord
MR C wrote:
dukebadboy wrote:One more question, where can I find torque setting for M10 nuts?
This i struggled on, even the tech at dealers could not give me a correct answer, I'm sure he said 45nm .
Lol do dealer ever adhere to these torque settings? I remember I used a Ducati dealer where you could watch them doing the work and they were precise with everything. I wonder if you can't see them doing the work, will they bother to do it under time stress.

Re: RE: Re: Accessories

Posted: Tue May 16, 2017 8:46 pm
by dukebadboy
Freude am Fahren wrote:According to the owner's manual (page 194). "Nut, rear hub shock absorber carrier, M10x1.25, 45Nm (33.2 lb-ft), Use Loctite 243".

If that's the ones you're referring to.
Thanks!

Re: Accessories

Posted: Tue May 16, 2017 10:51 pm
by dukebadboy
Sorry asking silly questions again...

Does anyone know what length is Sprocket Screws (61310052000) ? KTM parts catalog doesnt specify their size :(

Has anyone seen them being sold at ProBolts ?

Re: Accessories

Posted: Tue May 16, 2017 11:01 pm
by SUPERDUKEINOZ
dukebadboy wrote:Sorry asking silly questions again...

Does anyone know what length is Sprocket Screws (61310052000) ? KTM parts catalog doesnt specify their size :(

Has anyone seen them being sold at ProBolts ?
Did you break one? if not I dont see the need to replace them + I dont think the head on them will be any kind of common head that can be bought

Re: Accessories

Posted: Tue May 16, 2017 11:48 pm
by dukebadboy
SUPERDUKEINOZ wrote:
dukebadboy wrote:Sorry asking silly questions again...

Does anyone know what length is Sprocket Screws (61310052000) ? KTM parts catalog doesnt specify their size :(

Has anyone seen them being sold at ProBolts ?
Did you break one? if not I dont see the need to replace them + I dont think the head on them will be any kind of common head that can be bought
I did low-side and scratched most of them :(

So I got the flanged nuts, now just need to find the Screws. I can always order OEM ones, but though might try Titanium as well.

Re: Accessories

Posted: Wed May 17, 2017 12:28 am
by SUPERDUKEINOZ
Just go OEM again

Re: Accessories

Posted: Sat Jun 10, 2017 7:54 am
by knackers

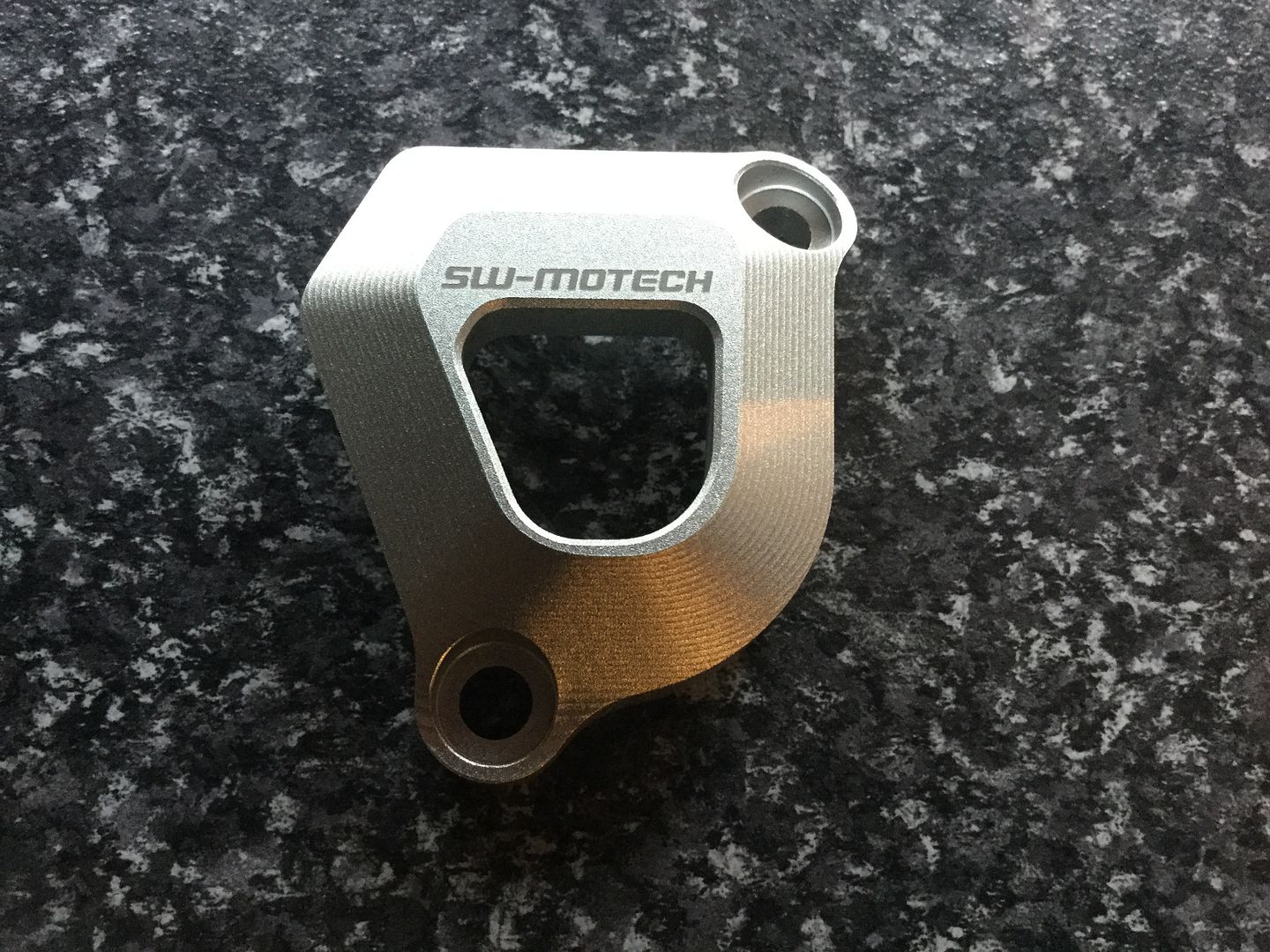

A little more protective bling.


Re: Accessories

Posted: Sun Jun 11, 2017 7:30 am
by knackers

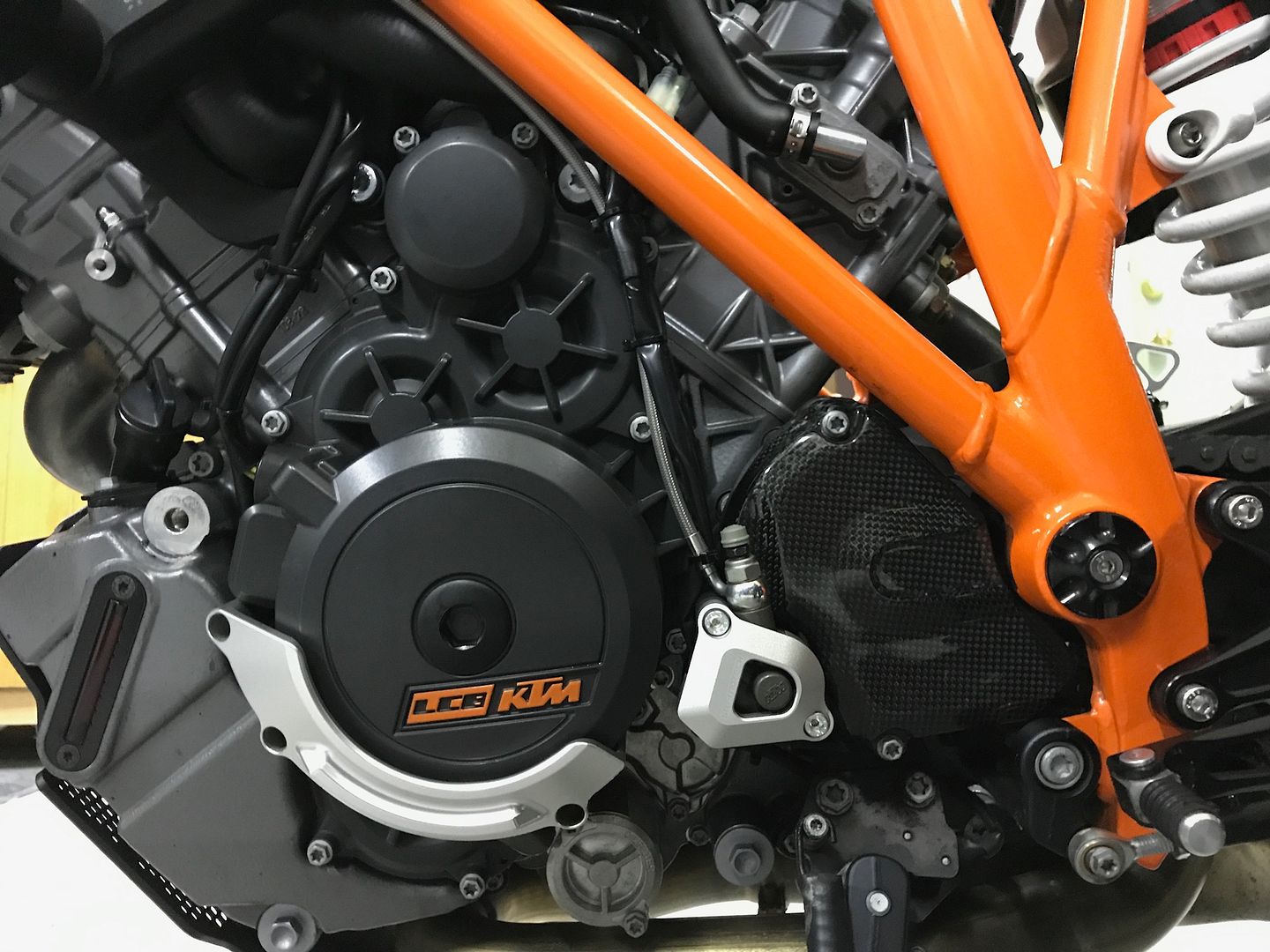

Looks even better fitted and goes well with it's neighbour


Re: Accessories

Posted: Wed Jun 28, 2017 1:35 am
by Fry
VAU wrote:
Dukerman wrote:Great job! That looks neat.
It is a solution of the German Forum.
The windshield is a part of the Duke690.
The Holder is a 3D Printed Stainless Steel Part.
We Design a CAD File und upload the file to a
Company who could produce it in Stainless Steel.

Will this bracket fit the 17 SDR?

Thanks

Re: Accessories

Posted: Wed Jun 28, 2017 2:14 am
by Fry
VAU wrote:
Dukerman wrote:Can it be 3D printed ?
First parts are printed successfull.

We developed a second version for a higher Position of the shield.

You find it here:
https://www.shapeways.com/product/E7QKP ... c05fbe053a

Will this work on a 2017 1290 SDR??

Re: Accessories

Posted: Wed Jun 28, 2017 11:36 am
by knackers
Fry wrote:
VAU wrote:
Dukerman wrote:Great job! That looks neat.
It is a solution of the German Forum.
The windshield is a part of the Duke690.
The Holder is a 3D Printed Stainless Steel Part.
We Design a CAD File und upload the file to a
Company who could produce it in Stainless Steel.

Will this bracket fit the 17 SDR?

Thanks
Yes no worries


Sent from my iPad using Tapatalk

Re: Accessories

Posted: Sat Jul 15, 2017 2:58 pm
by Fry
Does anyone have a picture of this bracket mounted up to a SDR, and or pics of mounting a 690 Windscreen on to this mount?

I know I'm being demanding but if someone could give a nice parts list and pics I'd appreciate it.

Re: Accessories

Posted: Mon Sep 18, 2017 3:26 am
by Kcal
Fry wrote:
Sat Jul 15, 2017 2:58 pm
Does anyone have a picture of this bracket mounted up to a SDR, and or pics of mounting a 690 Windscreen on to this mount?

I know I'm being demanding but if someone could give a nice parts list and pics I'd appreciate it.
I second this request. I like that look especially if it diverts a little wind at 90mph and higher.
