1290 Power Commander V Custom maps

Post by kevxtx » Fri Jul 18, 2014 7:09 am

Like we did for the 990's post all your custom made PCV Dyno maps here, or PM me & I will add them for you.

Unfortunately the sign of the times. The KTM 990 SMT forum or myself can not be held responsible for any modification done to your own motorcycle, any modification you under take is your own responsibility, we are not liable for any claim from the mods or fuel maps listed on this forum. The use of these PCV & Tune ECU HEX maps are at your own risk, it is always advised to get a professional tuner to tune your bike I always recommend a custom map to be built for your own bike.

NOTE: All Kevxtx maps are built on 95RON BP Australian fuels, when using my maps in the UK, Europe & the USA you may need to increase the fuel maps by +2%, in the USA using ethonal fuel you will need to increase the fuelling by +2 to +4%

PCV Download link for the below maps
https://www.mediafire.com/folder/m5x7dk ... 0_PCV_maps

How to build your own O2 eliminator:
viewtopic.php?f=29&t=6897&p=39090&hilit ... tor#p39090


#1 Kev 1290 custom map 18.7.14[/b] There is a 1290 & 1190 PCV map version of this map depending on which PCV you are running.
2014 KTM 1290 Super Duke
KTM STD map loaded
Wings slipon, no Baffle
DNA air filter, STD air box, modified snorkels.
OEM cat, OEM headers.
SAS blocked off for Dyno Tune
Built on 95RON BP fuel, Brisbane Australia
Custom tuned by Power House
Info on the map: viewtopic.php?f=29&t=6511&start=250

#2 Stagger Akra map 18.7.14 There is a 1290 & 1190 PCV map version of this map depending on which PCV you are running.
2014 KTM 1290 Super Duke
KTM Akra fuel map loaded
Full Akra Exhaust system installed
K&N filter in STD air box
Modified snorkels
SAS blacked off
Dyno jet O2 eliminators installed
Brisbane Australia
Custom tuned by Power House

3# Scott 14-1290-SD-IN-EX-POW-PCV-(SN) There is a 1290 & 1190 PCV map version of this map depending on which PCV you are running.
KTM STD map loaded
2014 KTM 1290 Super Duke
Rottweiler Intake System RIS-1290-SD-S4
Racefit Growler Decat
SAS Stage 3
Sea Level (Hayward CA) USA
Custom Tuned by RC Cycles

#4 Kevxtx 1290 Rotty. 1190 PCV There is a 1290 & 1190 PCV map version of this map depending on which PCV you are running.
2014 KTM 1290 Super Duke 10.10.14
KTM STD map loaded
1190 PCV custom map
Wings slipon, no Baffle
Rotty air box,
100mm / 80mm stacks
OEM cat, OEM headers

#5 Largeproject Evo
1290 PCV custom map, one map 2 cylinders
Akrapovic evo complete system
Akrapovic map loaded
K & N air filter
100/100 stacks
SAS blocked
O2 eleminators
Mapped at 15 degrees celcius using Shell 95RON fuel
Custom tuned by Power Point Netherlands

#6 akrapipeakramapRott
KTM 1290 PCV with O2 Eliminators
Rottweiler Airbox, Rottweiler 80/80 stacks,
Full Akra exhaust.
KTM Akra map in ECU.
SAS blockoff plates
92 Octane pump gas, mapped in Seattle USA

#7 Oupy 1290 07.04.2015
2014 KTM 1290 Super Duke
1290 PCV custom map
MIVV slipon, with Baffle
ktm standard ecu map
mapped @ dynotime 7-4-2015
Perth on Bp 95 fuel at sea level

#8. 19.5.2015 custom map 80.80 stacks. 1190 PCV map
2014 KTM 1290 Super Duke 19.5.15
KTM STD map loaded
Wings slipon, no Baffle
Rotweiller air box + 80/80 stacks
OEM cat, OEM headers
SAS blocked off
Custom map, 95 ron BP fuel , sea level, 22 degrees C. Australia Gold Coast kevxtx

#9 ktm 1290 sdr 2015
remus without buffle+decat link pipe
rottweiler intake system with 80/80 stacks sas off
pcv+ignition module installed
unleaded 100 octane shell vpower racing (place-Greece 15-20 degrees celsious about ) This is one map for both cylinders
RESULT: 171 whp (at dynojet dyno add 3% more) and 14kg torque
Thanks to ΦΡΑΓΚΟΥΛΗΣ


#10 NewyKTM 1290 Akra Evo PODs Custom.pvm

2014 1290r
PCV 1290 Version.
Full Akrapovic evo system, baffle out.
Akrapovic map loaded.
Dynojet 02 eliminators.
SAS removed.
Unifilter twin POD's (Enlarged Inner springs) in standard airbox with lid removed + mini rocker breather pod.
100/100 Stacks installed.
Snorkels in place.
Tank sound deadening removed.
PCV + Quickshifter with Power Parts rear sets.
Individual Cylinder Maps.
Australian Caltex 95ron premium fuel.
Altitude 28m Above sea level.
Dynojet Tunelink, Sportcycles NSW Australia.

#11 Austin racing Growler48.pvm
10.10.15
1290R
Akrapovic Map Flashed
Rottweiler Stage 3 SAS Removal Kit
Rottweiler Intake with Dual 80mm Stacks
Full Austin Racing GP-1 High Slung Exhaust
Maryland, USA
Temp: 68 Degrees F
Humidity: 45%
Pressure: 28.35 in-Hg
Correction Factor: SAE 1.04
Shell Premium 93 Octane Gas
Sea Level
Thanks to Growler84 for sharing his map: http://superduke.net/forum/viewtopic.php?f=1&t=25823


#12. Fragoulis149 ktm 1290 over akra map+ignition.pv

ktm 1290 sdr 2015
Akrapovic full system
Akrapovic map loaded
Rottweiler with both stacks 80
Pcv+ ignition
Greece 30 degrees Celsius
100 octane shell vpower
Results 166.8 whp from 148.9 stock and
13,6kg torque from 11.2

#13. DukeNukem CUSTOM.pvm
14-1290-SD-IN-EX-POW-PCV-(SN)
Thanks to DukeNukem
Akrapovic Slip on
Arrow decat
Rottweiler intake
2 80mm stacks
SAS stage 3
KTM std map
Octane 95

14. Aleks Custom map done by Platinum.pvm
2014 KTM 1290 Superduke PCV map
Tuned by Platinum motorcycles. Melbourne Australia
Akra map loaded
Rotty Air box, SAS removed and bloced off
No CAT
Akra slip on, 98 octane fuel

15# 16KTM1290SDR.pvm
Thanks to mjsracing
2016 1290 Super Duke USA
PCV + Ignition module # Note will not work on a PCV without ignition module.
300 Ft above sea level
93 octane pump gas
Rottweiler stage 3 intake kit
SAS block off
Remus Decat pipe
Stock can with baffle
KTM STD map loaded

16# Bretts.pvm

Thanks to Duked
2014 KTM 1290 Super Duke
Rottweiler Intake 80/80 stacks
Ackro slip on, with Baffle OUT
AIS delete etc
Each cylinder mapped individually
Premium unleaded Mapped in Perth Australia at sea level 21/10/2016

#16 2352.pvm
tm 1290SE 2016
Full Akra EVO
rottweiler intake 80/80 stacks
power commander v
ignition module
sas off.Singapore 2.Sea level, KTM Akra map loaded
16T sprocket
unleaded 98 octane shell
Sea Level
Singapore Thanks to Slaine65

#17 1267.pvm
2014 KTM 1290 R
Rotty Airbox
Sea level
100/80 stacks
Akra full EVO1. 2.Sea level,
sas blocked
Singapore, sea level, KTM Akra map loaded
Thanks to Slaine65

1290Nerd
125cc
125cc
Posts: 15
Joined: Tue Jun 10, 2014 5:13 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black

Re: Power Commander V Custom maps

Post by 1290Nerd » Fri Jul 18, 2014 12:06 pm

Great work Kev and very generous to make available to all.

Cheers

LenFerguson
990cc
990cc
Posts: 728
Joined: Mon Jun 11, 2012 8:15 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black
Location: South Brisbane QLD

Power Commander V Custom maps

Post by LenFerguson » Fri Jul 18, 2014 12:25 pm

Hi Kev, do you also have the O2 bypassed?
Current stable: KTM1290SDR(14), KTM1190ADVENTURE(14), BMWS1000RR(12), KTM690R(12), Husky TE250(13)

Previously loved: KTM990SMT(11), WR450F(10), F800GS(09), KLR650(08), KTM450EXC(05) FJR1300(04), KTM200EXC(03), XR400(03), CBR1000F(90), XR600(88), KR1(86)

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Fri Jul 18, 2014 12:55 pm

Yes I do Len, the PCV kit comes with O2 eliminators. Just as we found on the 990's the 1290 responds well to more air in.

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Sun Jul 20, 2014 1:55 am

We will have a full Akra exhaust system with Akra map loaded & mapped on the Dyno using Tune Link with a PCV to add next weekend, tuned for our Ozzy fuels. :D It will be interesting to see what gains are had as it is running to rich on our Ozzy fuels.

A/F ratio: Akra full exhaust system + Akra map.


LenFerguson
990cc
990cc
Posts: 728
Joined: Mon Jun 11, 2012 8:15 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black
Location: South Brisbane QLD

Power Commander V Custom maps

Post by LenFerguson » Sun Jul 20, 2014 10:52 am

That will be interesting to see Kev.
Current stable: KTM1290SDR(14), KTM1190ADVENTURE(14), BMWS1000RR(12), KTM690R(12), Husky TE250(13)

Previously loved: KTM990SMT(11), WR450F(10), F800GS(09), KLR650(08), KTM450EXC(05) FJR1300(04), KTM200EXC(03), XR400(03), CBR1000F(90), XR600(88), KR1(86)

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Sun Jul 20, 2014 11:15 am

With the intake mod & a bit of fuel pulled out of the Akra map we should see some nice gains,

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Thu Aug 28, 2014 10:01 am

Thanks to Stagger for sharing his PCV map with us.

#2 Stagger Akra map 18.7.14
2014 KTM 1290 Super Duke
KTM Akra fuel map loaded
Full Akra exhaust system installed
K&N filter in STD air box
Modified snorkels
SAS blacked off
Dyno jet O2 eliminators installed
Brisbane Australia

dmacl
250cc
250cc
Posts: 44
Joined: Wed Aug 06, 2014 6:58 pm
Country: United Kingdom
City: NE Scotland
Year: 2013
Colour: Black

Re: Power Commander V Custom maps

Post by dmacl » Fri Aug 29, 2014 10:02 pm

kevxtx wrote:Thanks to Stagger for sharing his PCV map with us.

#2 Stagger Akra map 18.7.14
2014 KTM 1290 Super Duke
KTM Akra fuel map loaded
Full Akra exhaust system installed
K&N filter in STD air box
Modified snorkels
SAS blacked off
Dyno jet O2 eliminators installed
Brisbane Australia
Any idea what gains Stagger saw with the PCV fitted and mapped?

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Sat Aug 30, 2014 4:53 am

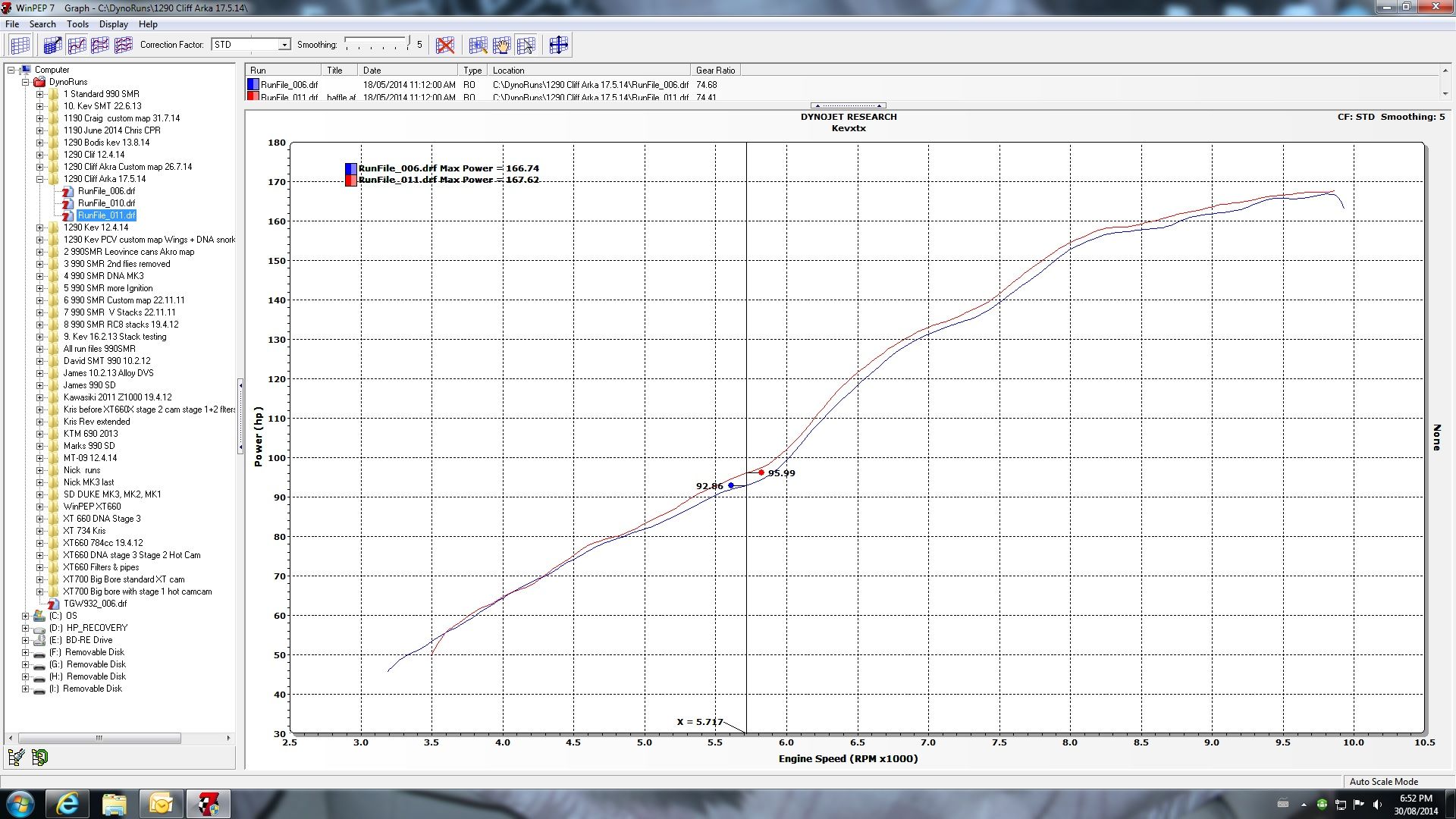

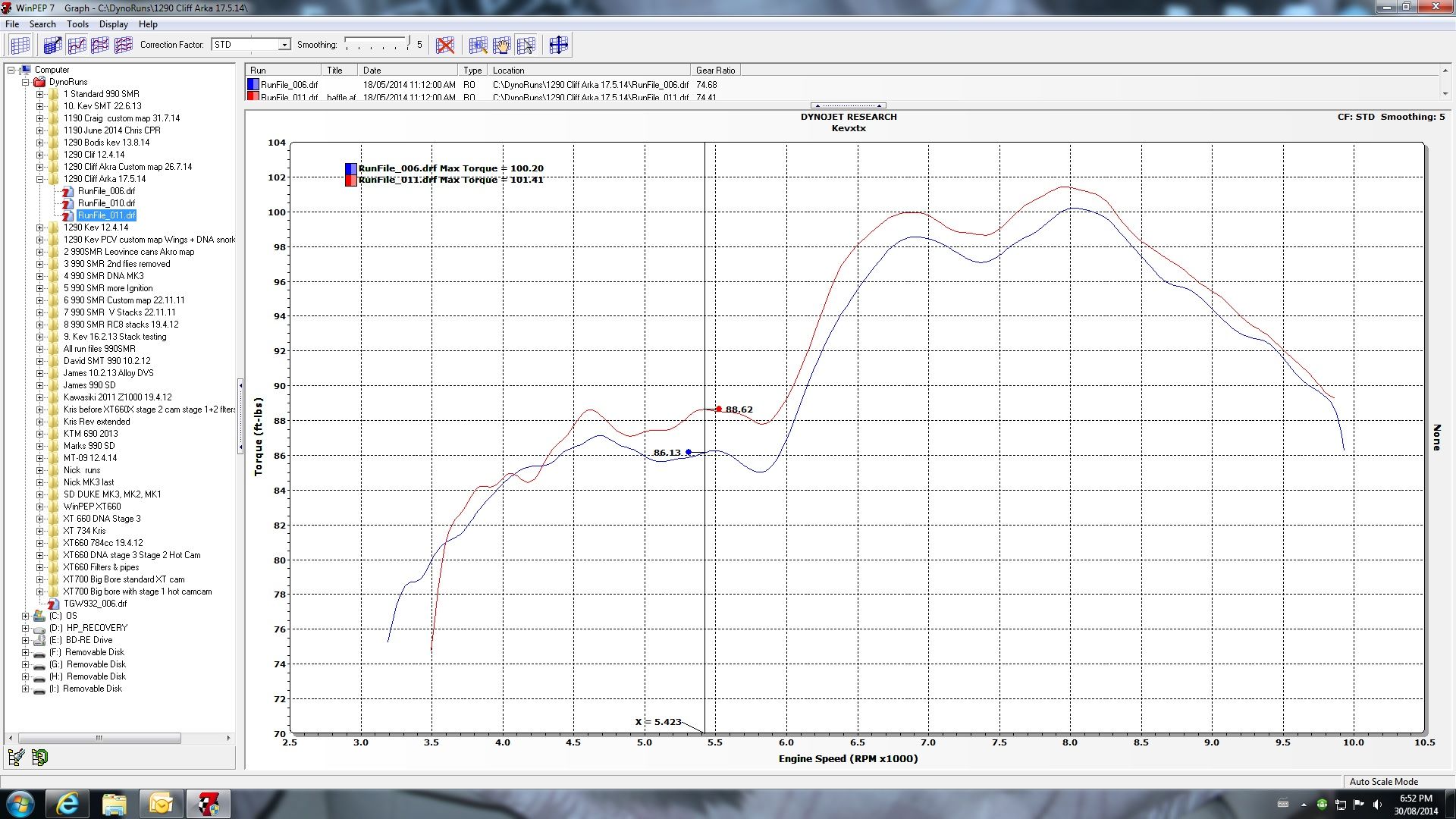

Blue line PCV mapped over Akra map with baffle in, Verse Red line Akra mapped baffle out. We know the baffle took 4HP after 8750RPM but the custom map out performed the open system before that.

HP


Torque


dmacl
250cc
250cc
Posts: 44
Joined: Wed Aug 06, 2014 6:58 pm
Country: United Kingdom
City: NE Scotland
Year: 2013
Colour: Black

Re: Power Commander V Custom maps

Post by dmacl » Sat Aug 30, 2014 9:25 am

Can you overlay baffle out with PCV and without PCV?

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Sat Aug 30, 2014 9:57 am

Stagger did not do any PCV mapping with baffle out as he was paying for the custom mapping & decided the bike was to noisy with baffle out & mapped the bike with baffle in. I do have Akra map loaded baffle in & out.

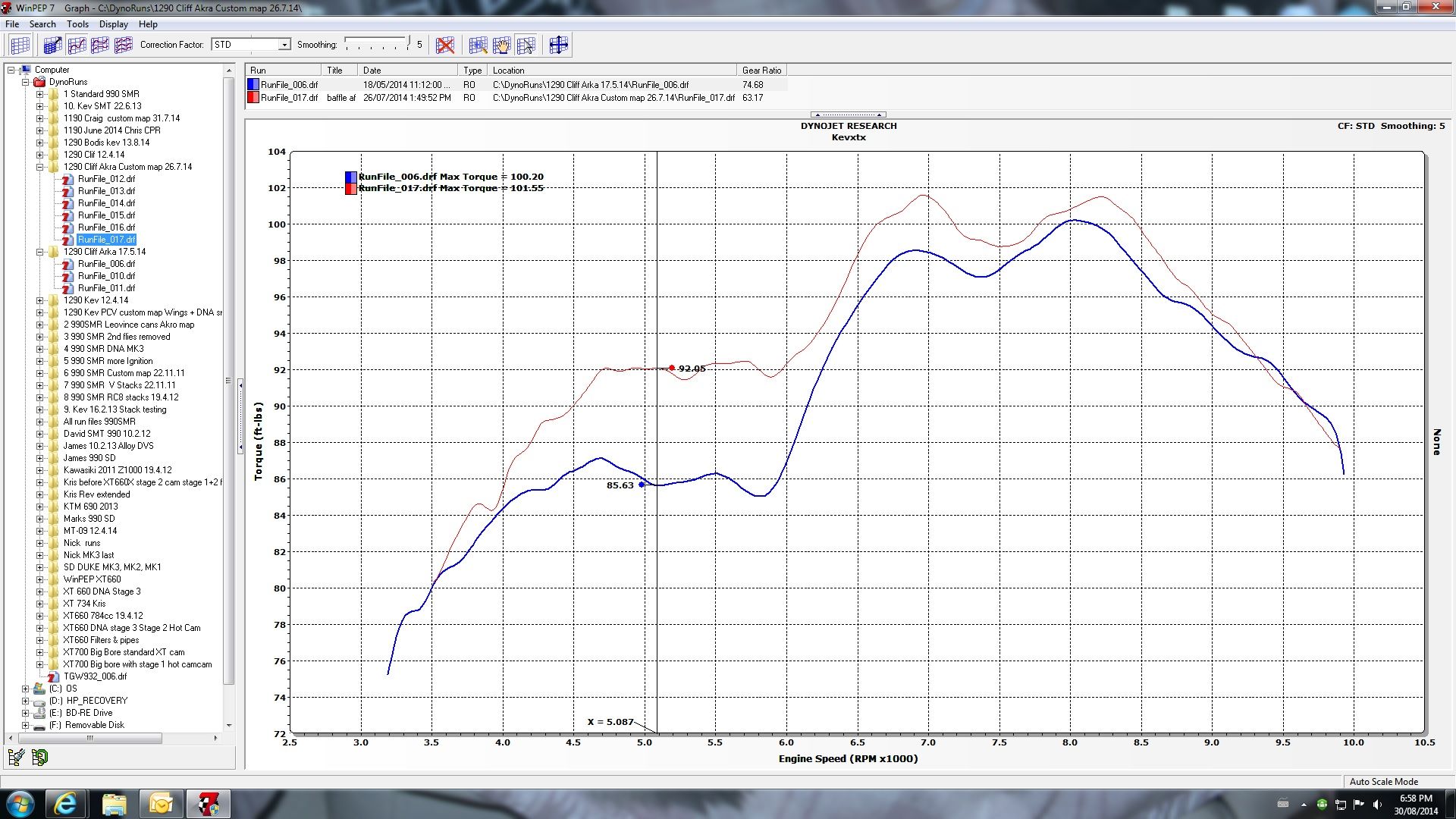

Red baffle out, Blue baffle in Akra map loaded no PCV fitted, Full Akra exhaust K&N filter.
HP

Torque

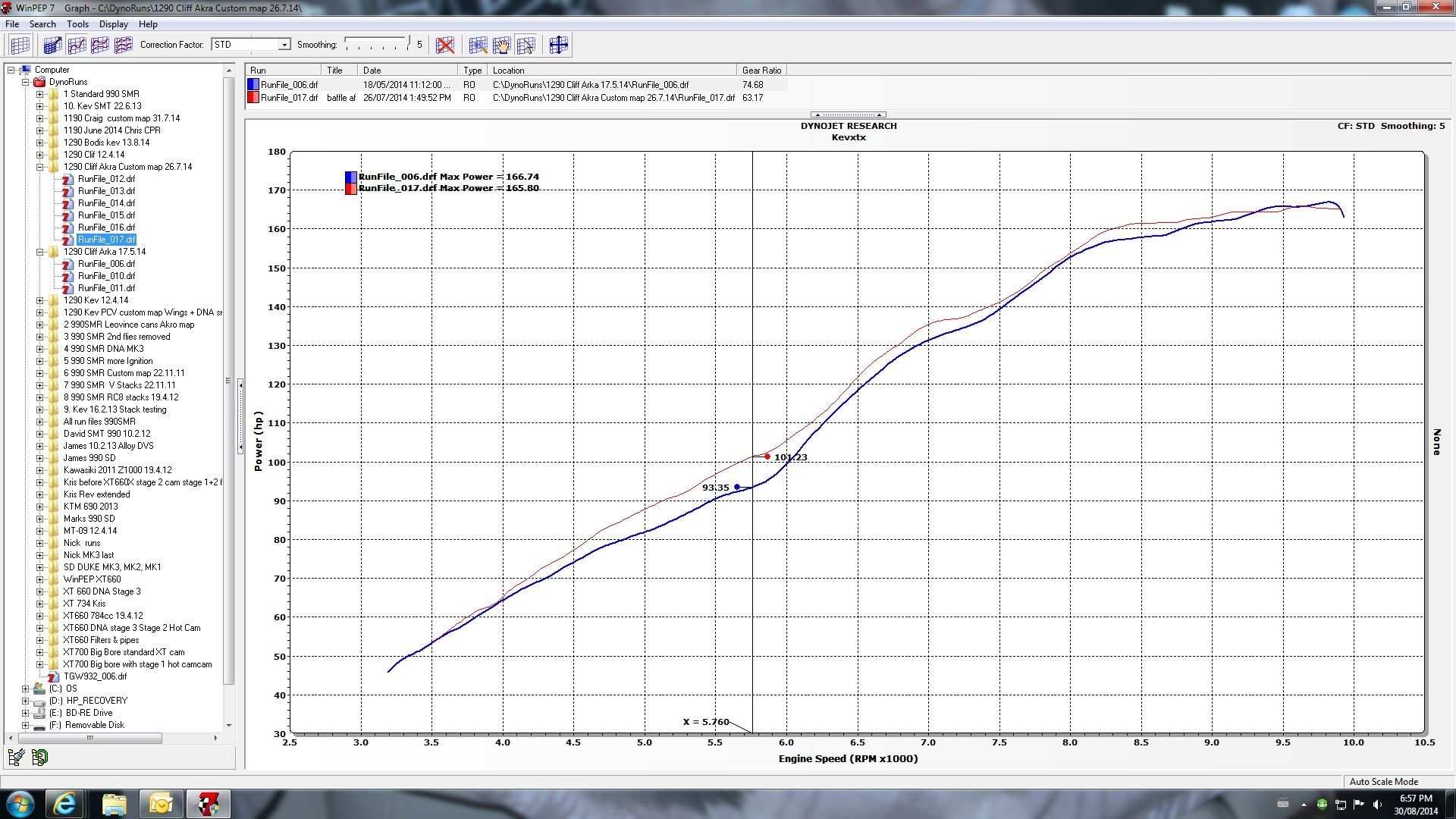

Blue run Akra map loaded baffle in, Red run PCV mapped baffle in + kev's snorkel mod.
HP

Torque

abc
500cc
500cc
Posts: 103
Joined: Fri Apr 18, 2014 10:15 am
Country: australia
City: Somewhere
Year: 2014
Model: SMT

Re: Power Commander V Custom maps

Post by abc » Sat Aug 30, 2014 1:42 pm

What a great result at 5000 rpm. Wouldn't it be fantastic if the same gains were available with the airbox kit installed and mapped. Should be fun :o
Well done to all involved.

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Sat Aug 30, 2014 11:07 pm

I was riding in the mountains with my bike yesterday & it has so much mid range torque, it is just mad to ride out of the corners, the bike is so fast in the mid range now, I am looking forward to the air box.

dflowers
900cc
900cc
Posts: 356
Joined: Sun Oct 23, 2011 3:08 am
Country: USA
City: Seattle
Year: 2010
Colour: White

Re: Power Commander V Custom maps

Post by dflowers » Sun Aug 31, 2014 4:52 am

Wow that is tempting data......

downunder
Supporter
Supporter
Posts: 382
Joined: Sun Apr 21, 2013 11:23 am
Country: Australia
City: Mount Gambier
Year: 2014

Re: Power Commander V Custom maps

Post by downunder » Thu Oct 02, 2014 8:37 am

Has anyone loaded Kev's or Stagger's map onto their 1290 PCV?
I tried today (Stagger's map) and got this message:

Unable to send map.
The device model Number does not match the map Model Number.
Device #450 vs. Map #442

Does this mean the 1290 PCV does not like 1190 PCV maps, or I've fumbled the ball somehow?
Gone but not forgotten: '74 Honda XL100, '75 Suzi TS100, '76 Suzi T500, '78 Yam XT500, '80 Suzi GSX1100ET, '81 Suzi GSX100EX, '84 Honda VF1000R, '99 Honda CBR900RR, '10 KTM 990SMT

dflowers
900cc
900cc
Posts: 356
Joined: Sun Oct 23, 2011 3:08 am
Country: USA
City: Seattle
Year: 2010
Colour: White

Re: Power Commander V Custom maps

Post by dflowers » Thu Oct 02, 2014 3:16 pm

I got that same message. I downloaded the map that was in my PC and pasted Stagger's map numbers into that one was was able to upload it.

downunder
Supporter
Supporter
Posts: 382
Joined: Sun Apr 21, 2013 11:23 am
Country: Australia
City: Mount Gambier
Year: 2014

Re: Power Commander V Custom maps

Post by downunder » Thu Oct 02, 2014 7:02 pm

Thanks, I'll try that.
Reply from Dynojet suggested the same, but also advised that the map will be slightly less accurate, so there must be a difference in the 1190 & 1290 PCV's.
I guess the Autotune will sort it out.
Gone but not forgotten: '74 Honda XL100, '75 Suzi TS100, '76 Suzi T500, '78 Yam XT500, '80 Suzi GSX1100ET, '81 Suzi GSX100EX, '84 Honda VF1000R, '99 Honda CBR900RR, '10 KTM 990SMT

User avatar
kevxtx
Moderator
Moderator
Posts: 4735
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Power Commander V Custom maps

Post by kevxtx » Thu Oct 02, 2014 10:02 pm

Copy & paste the tables from the 1190 PCV map to your 1290 PCV map this will over come the problem, sneaky buggers Dynojet.

The way I would do it was to open the 1190 PCV map copy both cylinders to a excel spread sheet close that map, then open a 1290 PCV map & paste both fuel table across.

abc
500cc
500cc
Posts: 103
Joined: Fri Apr 18, 2014 10:15 am
Country: australia
City: Somewhere
Year: 2014
Model: SMT

Re: Power Commander V Custom maps

Post by abc » Sat Oct 04, 2014 11:43 am

kevxtx wrote:Copy & paste the tables from the 1190 PCV map to your 1290 PCV map this will over come the problem, sneaky buggers Dynojet.

The way I would do it was to open the 1190 PCV map copy both cylinders to a excel spread sheet close that map, then open a 1290 PCV map & paste both fuel table across.
Is it possible for someone to install/copy/paste staggers 1190 pcv map into their 1290 pcv, then save it with a new name and post/share that map for us? Thanks.

Post Reply
