Aftermarket Filters & Air boxes

Post by kevxtx » Fri Feb 28, 2014 9:58 am

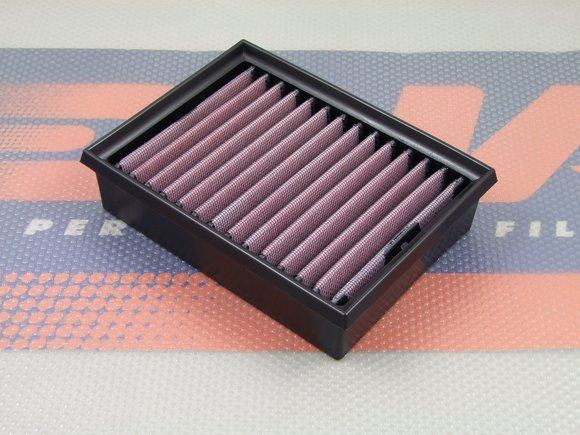

DNA air filter for KTM 1290 Super Duke R



Product Information :P-KT12E13-01
- This filter features DNA®'s advanced FCd (Full Contour design).
- Installation of the filter is very easy; simply follow the information that can be found in the workshop manual.
- A perfect airtight sealing and trouble free filter installation for the user is guaranteed by using a high quality EVA seal, which is precisely cut and factory installed (glued).

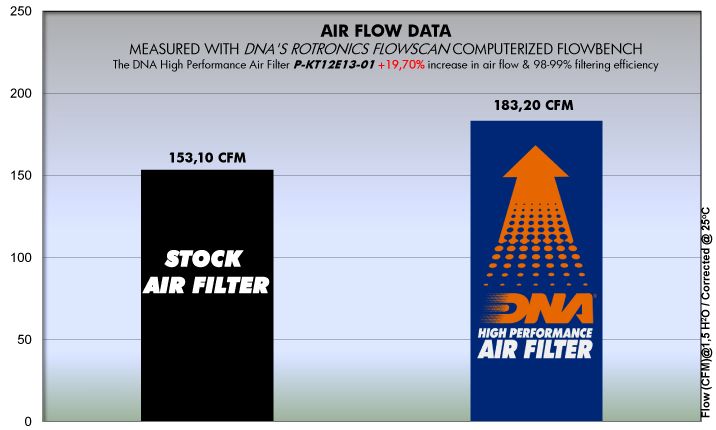

- The filtering efficiency is extremely high at 98-99% filtering efficiency, with 4 layers of DNA® Cotton.
- This DNA® filter is designed as a High flow filter for road use and off road use

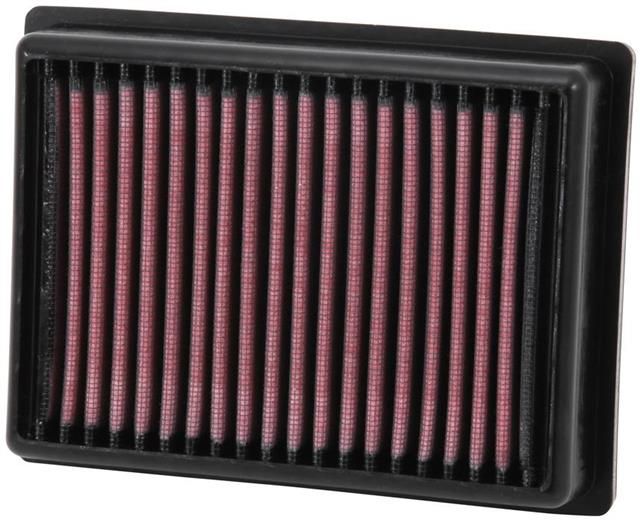

K&N KTM 1290 SDR


Available Information
KT-1113 Cross Reference
Air Filter Test Data
Product Flyer
KT-1113 Vehicle Applications
Part KT-1113 Product Specifications
Product Style: Panel Air Filter
Height: 1.625 in (41 mm)
Outside Length: 7.313 in (186 mm)
Outside Width: 5.5 in (140 mm)
Air Filter Shape: Panel
Filter Material: Cotton Gauze
Package Contents: 1 Air Filter
Package Quantity: 1
Filter Re-Oiling Amount: 0.89 oz (26 ml)
Weight: 0.88 lb (0.4 kg)
Product Box Length: 7.72 in (196 mm)
Product Box Width: 1.75 in (44 mm)
Product Box Height: 9.69 in (246 mm)

Bear990
675cc
675cc
Posts: 190
Joined: Mon Apr 08, 2013 6:36 am
Country: Australia
City: Newcastle
Year: 2012
Colour: White

Re: Aftermarket Filters & Air boxes

Post by Bear990 » Fri Feb 28, 2014 12:18 pm

Ha Kev you work fast mate.!

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Fri Feb 28, 2014 12:49 pm

I am 1290 info hungry at the moment, I think I will be doing a stage 2 filter with base plate on top of the 1290's lower air box.

dflowers
900cc
900cc
Posts: 356
Joined: Sun Oct 23, 2011 3:08 am
Country: USA
City: Seattle
Year: 2010
Colour: White

Re: Aftermarket Filters & Air boxes

Post by dflowers » Fri Feb 28, 2014 3:06 pm

Uh oh says my bank account.......

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Fri Feb 28, 2014 9:27 pm

You know me I do mods that are cheap to do & work, I was thinking of something simular to this mod but with a foam air box on top so I can get the most volume out of the lid: viewtopic.php?f=13&t=3299&start=250

Bootworks
Supporter
Supporter
Posts: 443
Joined: Sat Dec 04, 2010 11:31 pm
Country: USA
City: Livermore California
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by Bootworks » Sun Mar 02, 2014 6:29 am

Just trying to learn (dumb question intro...)
Wouldn't the less restrictive air intake lean out the AFR even more than stock without remapping (enriching) to compensate?

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Sun Mar 02, 2014 7:53 am

Quite correct, I already have an O2 controller to remap the closed loop circuit & I have a basic adjustable fuel mod that can adjust the open loop mapping, I am working with a few tuning companies as we speak looking for that first full mappable tunning tool.

abc
500cc
500cc
Posts: 103
Joined: Fri Apr 18, 2014 10:15 am
Country: australia
City: Somewhere
Year: 2014
Model: SMT

Re: Aftermarket Filters & Air boxes

Post by abc » Wed May 07, 2014 2:40 am

Kev,
Have you fitted this air filter to the 1290 and if so what difference do you think it made? I know some of us will be doing extensive mods to our airbox in the future once the maping is sorted out but I just wanted to know if this basic mod had any noticable effect.
Thanks.

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Wed May 07, 2014 9:25 am

All the air filter tests have been done & the results are in my 1290 mod list: viewtopic.php?f=29&t=6511&start=60

A full free flow air box will be out soon, I will be doing back to back Dyno testing & will reveal all the results & offer a custom PCV maps to go with the air box.

abc
500cc
500cc
Posts: 103
Joined: Fri Apr 18, 2014 10:15 am
Country: australia
City: Somewhere
Year: 2014
Model: SMT

Re: Aftermarket Filters & Air boxes

Post by abc » Sat May 10, 2014 10:48 am

Thanks Kev.
I fitted the DNA filter today as an interim measure and will not chop my air box up until I can get a spare to work with or design and make another base plate and build a fully filtered top.

robby-hk
250cc
250cc
Posts: 61
Joined: Sun Apr 27, 2014 3:58 pm
Country: HK
City: HK
Year: 2014
Colour: Black & Orange
Model: SMT

Re: Aftermarket Filters & Air boxes

Post by robby-hk » Tue Jun 17, 2014 2:46 am

Where'd you get your DNA air filters guys ?

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Tue Jun 17, 2014 3:58 am

robby-hk wrote:Where'd you get your DNA air filters guys ?
http://www.kenma.com.au/

Towbar
250cc
250cc
Posts: 58
Joined: Mon Jun 02, 2014 12:38 am
Country: Australia
City: Perth
Year: 2014
Colour: Black
Model: SMT

Re: Aftermarket Filters & Air boxes

Post by Towbar » Tue Jun 17, 2014 10:07 am

Kev,

out of interest... why did you go for 'DNA' filter as opposed to the usual K&N or BMC...?

I've used both in the past, and even have a BMC RACE filter in my track bike based on a recommendation from a dyno guy...

Just wondering as I hadn't considered a 'DNA'.

The results do look good based on your dyno runs as it looks like I can run a filter straight away without rejetting (showing my age there) -I mean retuning via a PCV....

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Tue Jun 17, 2014 10:44 am

Flow rates for me, from past experiences between the K&N & DNA filters tested on the same flow bench the DNA filters flowed more air, the reason being on the filters we tested the DNA filter ran larger filter pleats allowing more air volume. In some cases K&N claim there filters flow more & can really comment on the filters we tested for flow with back to back Dyno testing on the same bike between the brands. I have not done any flow or Dyno shot outs between the 1290 K&N & DNA filters, what I do know we should see some gains from faster air into this big V twin motor with an open air box.

I did approach DNA for a 1290 air box but they did not come back to me, I am keen on testing Chris's Rottweiler air box which will be released soon, I hope to get one of the first ones off the production line.

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Fri Aug 22, 2014 2:16 am

Chris at Rottweiler has certainly put some thought into this one, I must admit it looks the goods, this is the stage 2 air box with size ? stacks inside, Chris tell me there will be 3 stages, he keeps teasing us all with these snippets.


OZsuperduker
500cc
500cc
Posts: 94
Joined: Wed Apr 16, 2014 2:32 am
Country: Australia
City: Melbourne
Year: 2014
Model: SMT

Aftermarket Filters & Air boxes

Post by OZsuperduker » Fri Aug 22, 2014 3:00 am

Those short stacks seem focused on top end power. I like to keep my factory stacks for bottom end power. In they won't fit then this box might not be for me. I want a bike that has a lot of bottom and midrange.

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Fri Aug 22, 2014 3:30 am

I am a torque lover as well, I am sure the track boys will snap the shorter stacks up, I am waiting on Chris's Dyno run results with the different stages to see what it does to the power.

downunder
Supporter
Supporter
Posts: 382
Joined: Sun Apr 21, 2013 11:23 am
Country: Australia
City: Mount Gambier
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by downunder » Fri Aug 22, 2014 8:04 am

There will be room for the tall stack at the front 8-)
Gone but not forgotten: '74 Honda XL100, '75 Suzi TS100, '76 Suzi T500, '78 Yam XT500, '80 Suzi GSX1100ET, '81 Suzi GSX100EX, '84 Honda VF1000R, '99 Honda CBR900RR, '10 KTM 990SMT

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Fri Aug 22, 2014 8:13 am

downunder wrote:There will be room for the tall stack at the front 8-)
You been spying on my computer again haven't you 8-)

User avatar
kevxtx
Moderator
Moderator
Posts: 4736
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Aftermarket Filters & Air boxes

Post by kevxtx » Sun Aug 24, 2014 9:08 am

KTM 1290 Stage 2 velocity stack
